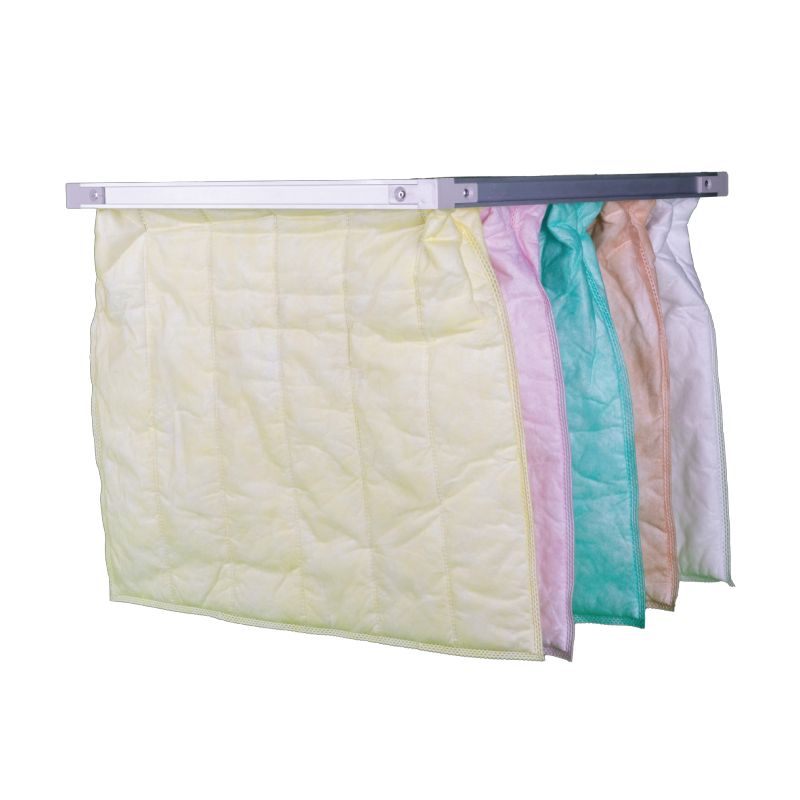

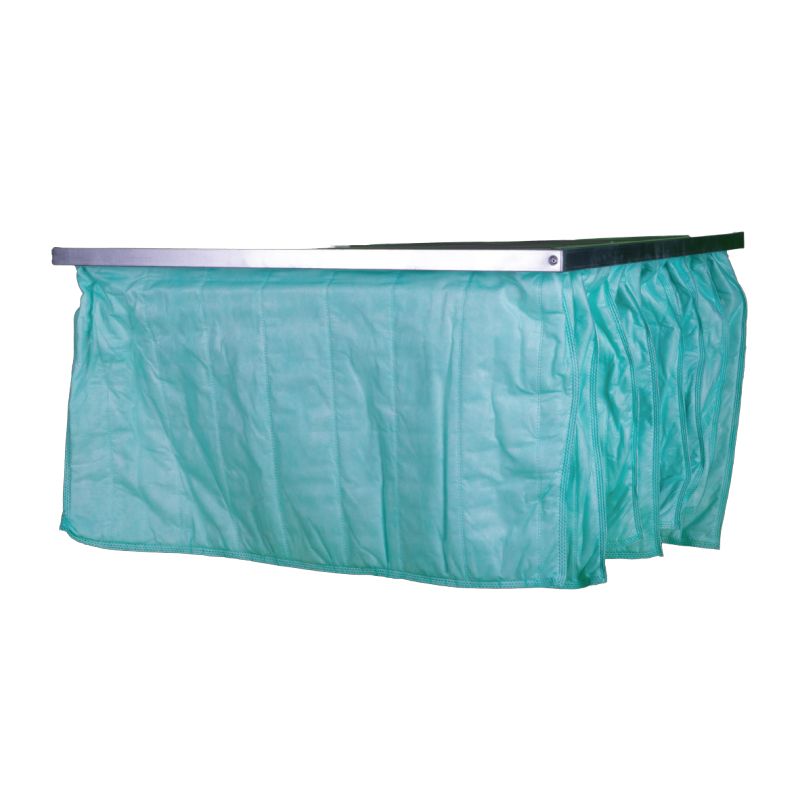

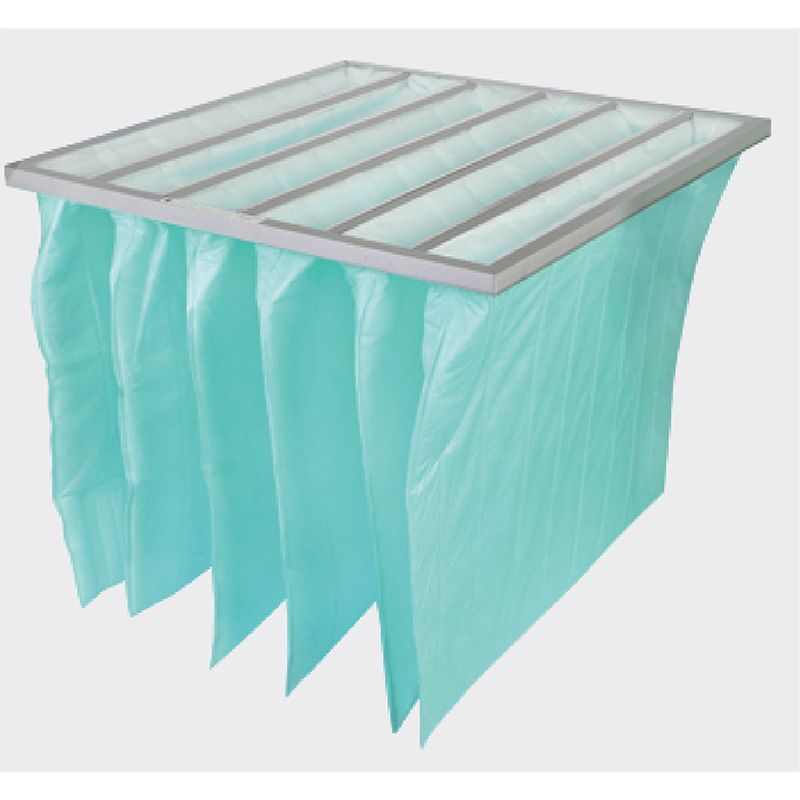

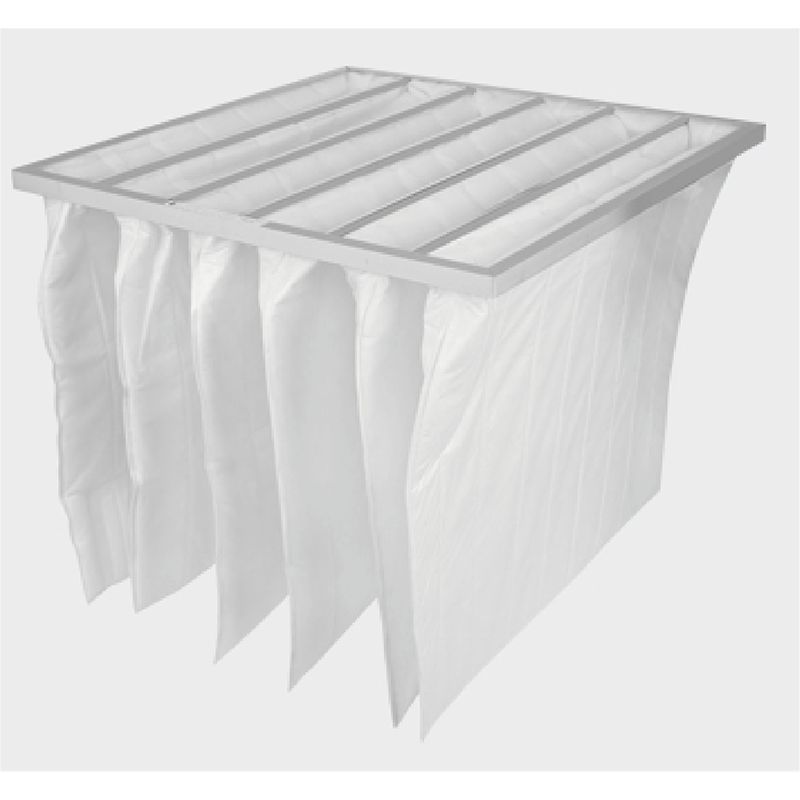

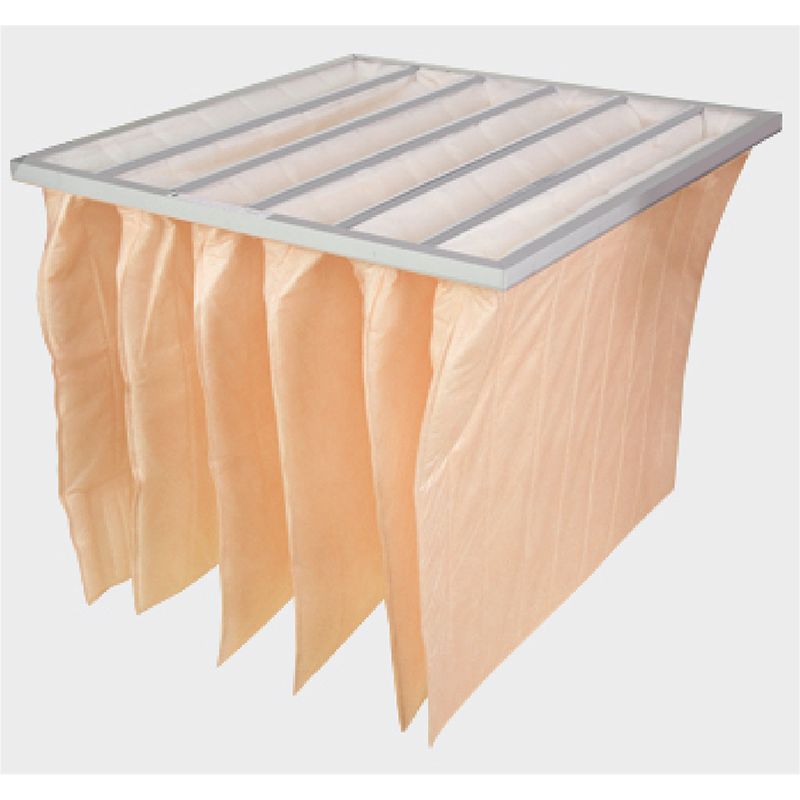

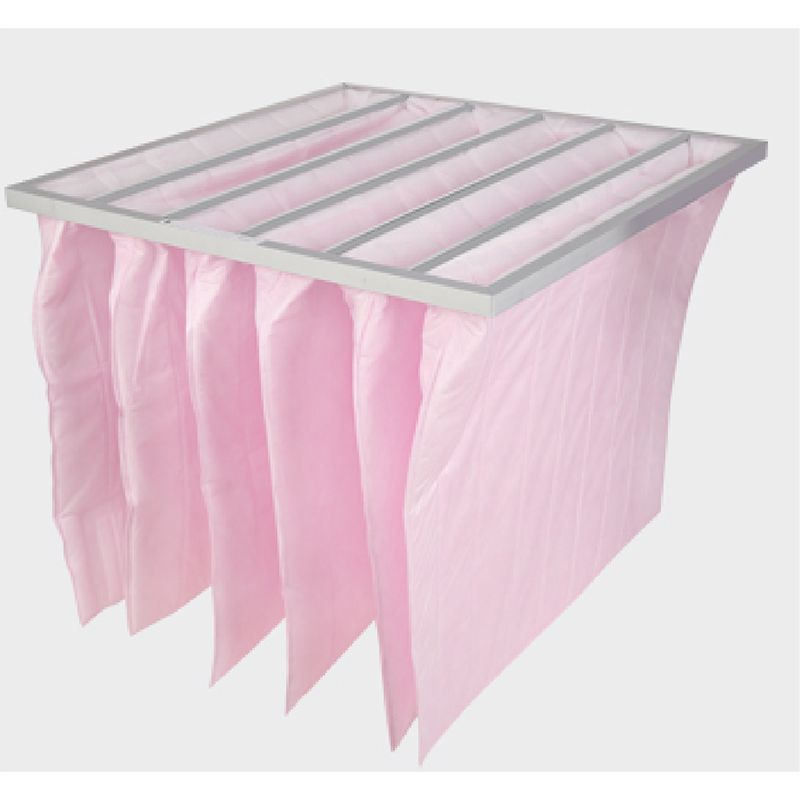

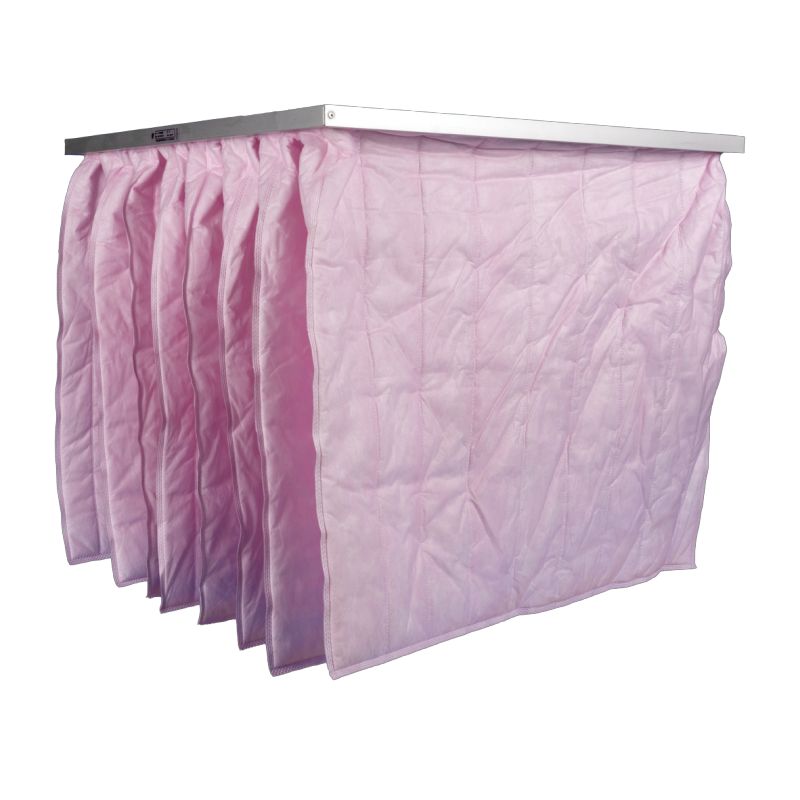

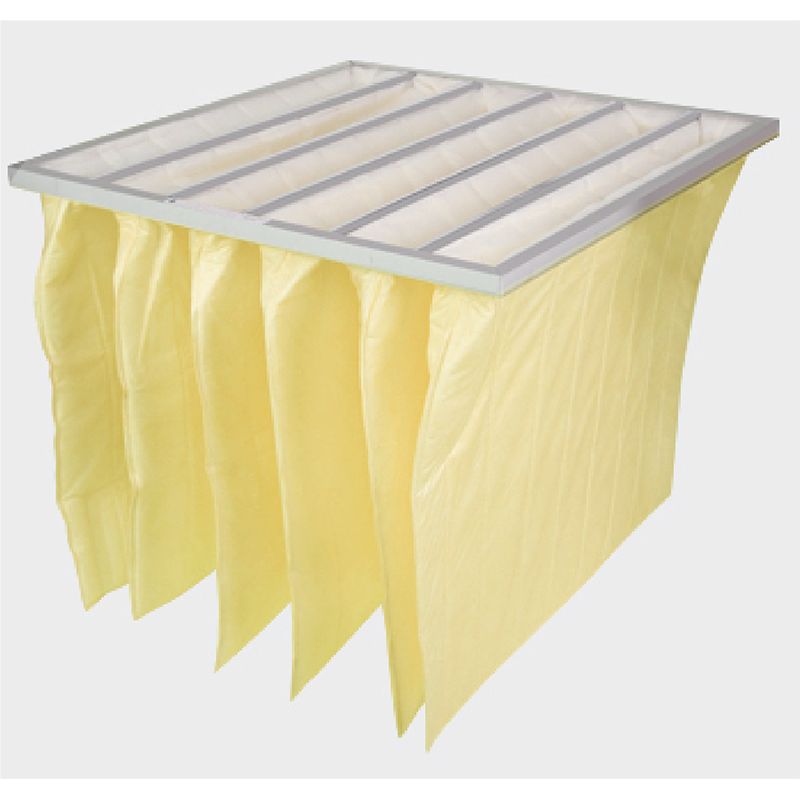

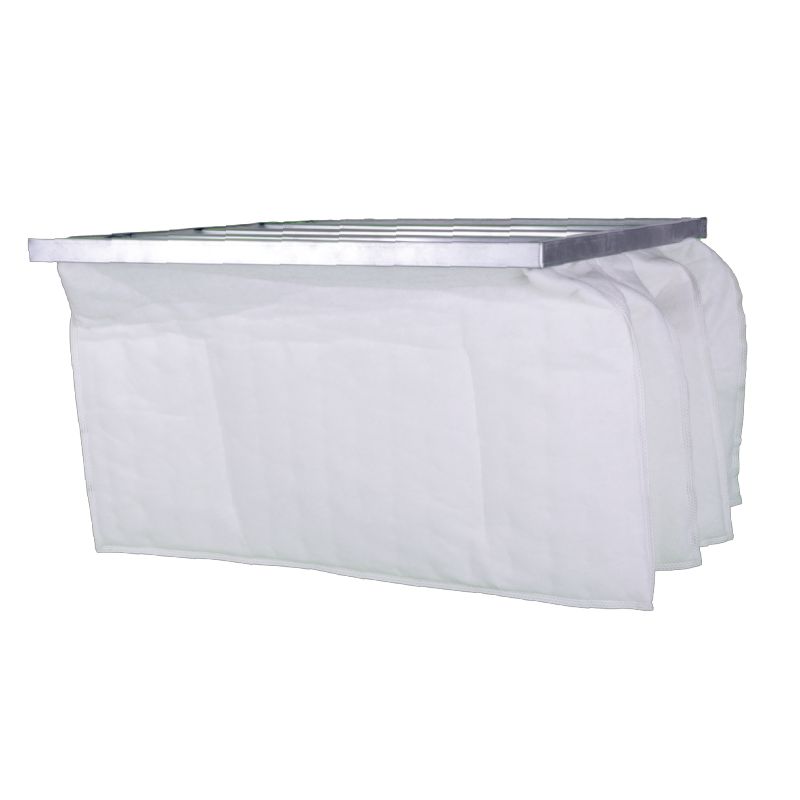

Medium Efficiency Bag Filter

These Ebam Medium Efficiency Bag Filters from China manufacturers feature a robust, leak-resistant design to capture any escaping dust effectively. The bags are sealed on three sides to prevent shrinkage or tearing. Internal airflow channels are sewn horizontally within the bag and sealed with a thermoplastic adhesive through hot-melt pressing to ensure seam integrity. The unique bag structure guarantees uniform airflow distribution throughout the entire bag. The application of hot-melt technology prevents overcrowding and leakage between bags, reducing air resistance and maximizing dust-holding capacity. To withstand challenging operational conditions, a reinforced "bag support grill" prevents the filter from shrinking or buckling.

Stable structure and reduced risk of leakage achieved through the hot-melt process.
High air volume, low resistance, and excellent dust-holding capacity.
Reusable and cleanable for multiple uses.
Filter materials include special non-woven fabric or glass fiber.
Suitable for use in environments with temperatures and humidity levels up to 80°C and 80%, respectively.
Efficiency ratings span from F5 to F9, capturing particles from 1 to 5 micrometers at an efficiency range of 60% to 95% (colorimetric method).
Constructed from synthetic fiber composite filter material or extremely fine glass fiber.

Medium Efficiency Bag Filter Applications:

Primarily employed for intermediate filtration in central air conditioning and ventilation systems, these filters are used across various industrial sectors, including pharmaceuticals, hospitals, electronics, and food processing, to enhance purification. They can also serve as a front-end filtration stage for high-efficiency filtration systems.
